Nymet valves

World Leader in Design and Production of Customised OEM Valves

Dual Check Valves

.
1” BSP Inlet Female x 1” BSP Outlet Male

1 : 1” BSP Inlet (Female) - 1” BSP Outlet (Male)

  • 1” BSP Inlet Female x 1" BSP Outlet Male
  • Max. Operating Pressure
    1050kPa (152psi)
    Temperature Range
    1°C - 60°C (ambient)
    1°C - 60°C (media)
    Nominal Flow Rate
    At least 60LPM with 50kPa Pressure Drop
    Media Types
    Water

  • icon documentDetailed Technical Specifications

3/4” BSP Inlet Female - 1” BSP Outlet Male

2 : 3/4” BSP Inlet (Female) - 1” BSP Outlet (Male)

  • 3/4” BSP Inlet (Female) - 1” BSP Outlet (Male)
  • Max. Operating Pressure
    1050kPa (152psi)
    Temperature Range
    1°C - 60°C (ambient)
    1°C - 60°C (media)
    Nominal Flow Rate
    At least 60LPM with 60kPa pressure drop
    Media Types
    Water

  • icon documentDetailed Technical Specifications

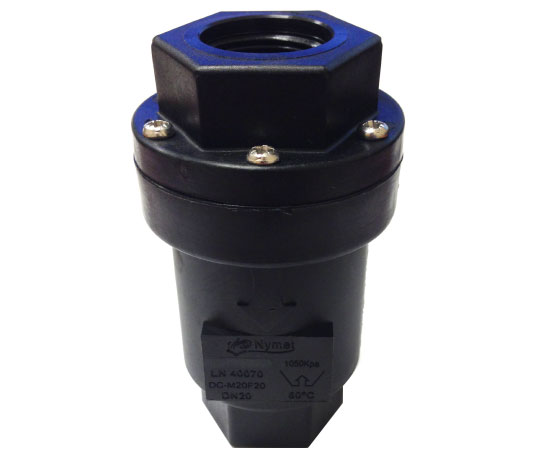

3/4” BSP Inlet (Female) - 3/4” BSP Outlet (Female)

3 : 3/4” BSP Inlet (Female) - 3/4” BSP Outlet (Female)

  • Solenoid Valve 3 : SERIES C 3/4” BSP Inlet (Male) - 1/2” Barb Outlet
  • Max. Operating Pressure
    1050kPa (152psi)
    Temperature Range
    1°C - 60°C (ambient)
    1°C - 60°C (media)
    Nominal Flow Rate
    At least 60LPM with 60kPa pressure drop
    Media Types
    Water

  • icon documentDetailed Technical Specifications
