Products
Solenoid Valves
- Please click on the valve for detailed technical information, photos and drawings.
Download Short Form Catalogue
2009/2010
PDF document 3.6MB- Download Approvals & Accreditation
PDF document 0.8MB
.
1 : Series A 3/4” BSP Inlet (Male) - 3/4” BSP Outlet (Male)
-
- Pressure Range
- 20kPa (3psi) - 1250kPa (180psi)
- Temperature Range
- 2°C - 60°C (ambient)
2°C - 80°C (media) - Nominal Flow Rate
- 20LPM
- Media Types
- Air, Water, Light Oil
-
Detailed Technical SpecificationsDownload PDF Brochure Download Flow Characteristic PDF file
Download CAD 3D Model IGS fileDownload CAD Drawing PDF file

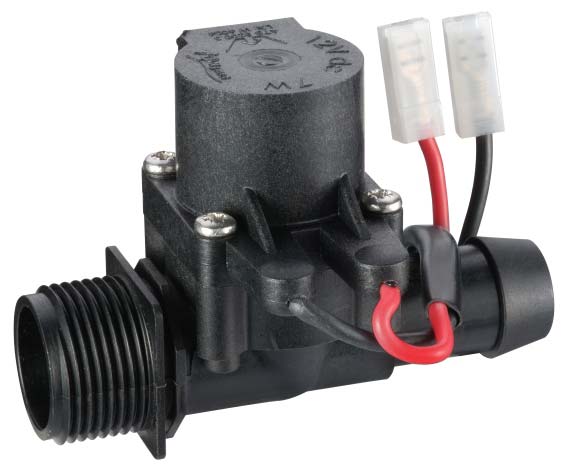

2 : SERIES B 3/4” BSP Inlet (Male) - 3/4” Barb Outlet
-
- Pressure Range
- 20kPa (3psi) - 1250kPa (180psi)
- Temperature Range
- 2°C - 60°C (ambient)
2°C - 80°C (media) - Nominal Flow Rate
- 20LPM
- Media Types
- Air, Water, Light Oil
-
Detailed Technical SpecificationsDownload PDF Brochure Download Flow Characteristic PDF fileDownload CAD 3D Model IGS fileDownload CAD Drawing PDF file
3 : SERIES C 3/4” BSP Inlet (Male) - 1/2” Barb Outlet
-
- Pressure Range
- 20kPa (3psi) - 1250kPa (180psi)
- Temperature Range
- 2°C - 60°C (ambient)
2°C - 80°C (media) - Nominal Flow Rate
- 20LPM
- Media Types
- Air, Water, Light Oil
-
Detailed Technical SpecificationsDownload PDF Brochure Download Flow Characteristic PDF fileDownload CAD 3D Model IGS fileDownload CAD Drawing PDF file
4 : SERIES D 3/4” BSP Inlet (Male) - 10.5mm Barb Outlet
-
- Pressure Range
- 20kPa (3psi) - 1250kPa (180psi)
- Temperature Range
- 2°C - 60°C (ambient)
2°C - 80°C (media) - Nominal Flow Rate
- 20LPM
- Media Types
- Air, Water, Light Oil
-
Detailed Technical SpecificationsDownload PDF Brochure Download Flow Characteristic PDF fileDownload CAD 3D Model IGS fileDownload CAD Drawing PDF file

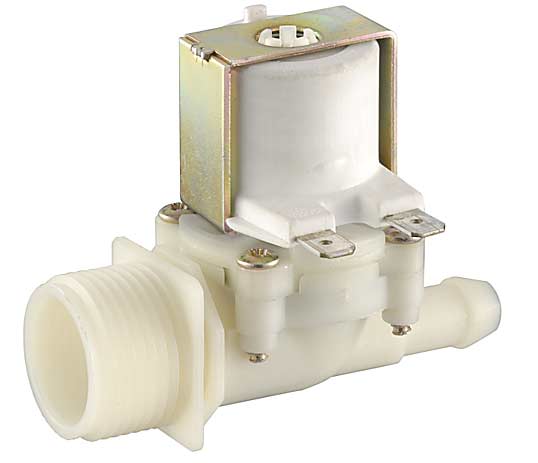

5 : SERIES E 3/4” BSP Inlet (Male) - 10.5mm Barb Outlet Inline
-
- Pressure Range
- 20kPa (3psi) - 1250kPa (180psi)
- Temperature Range
- 2°C - 60°C (ambient)
2°C - 80°C (media) - Nominal Flow Rate
- 20LPM
- Media Types
- Air, Water, Light Oil
-
Detailed Technical SpecificationsDownload PDF Brochure Download Flow Characteristic PDF fileDownload CAD 3D Model IGS fileDownload CAD Drawing PDF file
6 : SERIES F 3/4” BSP Inlet (Male) - 10.5mm Barb Outlet Right Angle
-
- Pressure Range
- 20kPa (3psi) - 1250kPa (180psi)
- Temperature Range
- 2°C - 60°C (ambient)
2°C - 80°C (media) - Nominal Flow Rate
- 20LPM
- Media Types
- Air, Water, Light Oil
-
Detailed Technical SpecificationsDownload PDF Brochure Download Flow Characteristic PDF fileDownload CAD 3D Model IGS fileDownload CAD Drawing PDF file
7 : SERIES G 3/4” BSP Inlet (Male) - 1/2” Barb Outlet Right Angle
-
- Pressure Range
- 20kPa (3psi) - 1250kPa (180psi)
- Temperature Range
- 2°C - 60°C (ambient)
2°C - 80°C (media) - Nominal Flow Rate
- 20LPM
- Media Types
- Air, Water, Light Oil
-
Detailed Technical SpecificationsDownload PDF Brochure Download Flow Characteristic PDF fileDownload CAD 3D Model IGS fileDownload CAD Drawing PDF file
8 : SERIES H 1/2” BSP Inlet (Male) - 1/2” BSP Outlet (Female)
-
- Pressure Range
- 20kPa (3psi) - 1250kPa (180psi)
- Temperature Range
- 2°C - 60°C (ambient)
2°C - 80°C (media) - Nominal Flow Rate
- 20LPM
- Media Types
- Air, Water, Light Oil
-
Detailed Technical SpecificationsDownload PDF Brochure Download Flow Characteristic PDF fileDownload CAD 3D Model IGS fileDownload CAD Drawing PDF file
9 : SERIES J 3/4” BSP Inlet (Male) - 16mm Barb Outlet
-
- Pressure Range
- 20kPa (3psi) - 1250kPa (180psi)
- Temperature Range
- 2°C - 60°C (ambient)
2°C - 80°C (media) - Nominal Flow Rate
- 20LPM
- Media Types
- Air, Water, Light Oil
-
Detailed Technical SpecificationsDownload PDF Brochure Download Flow Characteristic PDF fileDownload CAD 3D Model IGS fileDownload CAD Drawing PDF file
10 : SERIES K 2 x 5/8” Barb Inlet - 1 x 3/4” Barb Outlet
-
- Pressure Range
- 20kPa (3psi) - 1250kPa (180psi)
- Temperature Range
- 2°C - 60°C (ambient)
2°C - 80°C (media) - Nominal Flow Rate
- 20LPM
- Media Types
- Air, Water, Light Oil
-
Detailed Technical SpecificationsDownload PDF Brochure Download Flow Characteristic PDF fileDownload CAD 3D Model IGS fileDownload CAD Drawing PDF file
11 : SERIES L 3/8” BSP Inlet (Female) - 3/8” BSP Outlet (Female)
-
- Pressure Range
- 20kPa (3psi) - 1250kPa (180psi)
- Temperature Range
- -40°C - 135°C (ambient)
2°C - 80°C (media) - Max Flow Rate
- 120,000 BTU/Hr
- Media Types
- Natural Gas, Mixed LP & LP/Air Mixtures
-
Detailed Technical SpecificationsDownload PDF Brochure Download Flow Characteristic PDF fileDownload CAD 3D Model IGS fileDownload CAD Drawing PDF file
12 : SERIES M 3/8” BSP Inlet (Male) - 5/8” Barb Outlet
-
- Pressure Range
- 20kPa (3psi) - 1250kPa (180psi)
- Temperature Range
- 2°C - 60°C (ambient)
2°C - 80°C (media) - Nominal Flow Rate
- 20LPM
- Media Types
- Air, Water, Light Oil
-
Detailed Technical SpecificationsDownload PDF Brochure Download Flow Characteristic PDF fileDownload CAD 3D Model IGS fileDownload CAD Drawing PDF file
13 : SERIES N 1” BSP Inlet (Female) - 1” BSP Outlet (Female)
-
- Pressure Range
- 50kPa (7psi) - 1250kPa (180psi)
- Temperature Range
- 2°C - 60°C (ambient)
2°C - 60°C (media) - Nominal Flow Rate
- 100LPM
- Media Types
- Air, Water, Light Oil
-
Detailed Technical SpecificationsDownload PDF Brochure Download Flow Characteristic PDF fileDownload CAD 3D Model IGS fileDownload CAD Drawing PDF file
14 : SERIES P 1/2” BSP Inlet (Male) - 2 x 1/2” BSP Outlet (Male)
-
- Pressure Range
- 20kPa (3psi) - 1250kPa (180psi)
- Temperature Range
- 2°C - 60°C (ambient)
2°C - 80°C (media) - Nominal Flow Rate
- 20LPM
- Media Types
- Air, Water, Light Oil
-
Detailed Technical SpecificationsDownload PDF Brochure Download Flow Characteristic PDF fileDownload CAD 3D Model IGS fileDownload CAD Drawing PDF file
15 : SERIES Q (Direct Acting) 1/2” BSP Inlet (Male) - 1/2” BSP Outlet (Female)
-
- Pressure Range
- 6kPa (1psi) - 200kPa (29psi)
- Temperature Range
- 2°C - 60°C (ambient)
2°C - 80°C (media) - Nominal Flow Rate
- 5LPM
- Media Types
- Air, Water, Light Oil
-
Detailed Technical SpecificationsDownload PDF Brochure Download Flow Characteristic PDF fileDownload CAD 3D Model IGS fileDownload CAD Drawing PDF file

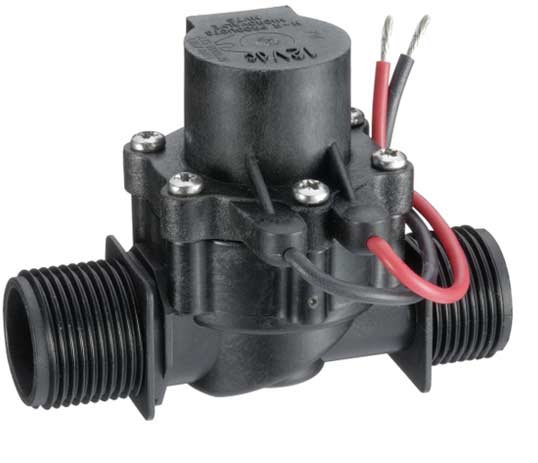

16 : SERIES R 3/4” BSP Inlet (Male) - 3/4” BSP Outlet (Male) High Flow
-
- Pressure Range
- 30kPa (4psi) - 1250kPa (180psi)
- Temperature Range
- 2°C - 60°C (ambient)
2°C - 80°C (media) - Nominal Flow Rate
- 50LPM
- Media Types
- Air, Water, Light Oil
-
Detailed Technical SpecificationsDownload PDF Brochure Download Flow Characteristic PDF fileDownload CAD 3D Model IGS fileDownload CAD Drawing PDF file
17 : SERIES S 3/4” BSP Inlet (Male) - 3/4” Barb Outlet High Flow
-
- Pressure Range
- 30kPa (4psi) - 1250kPa (180psi)
- Temperature Range
- 2°C - 60°C (ambient)
2°C - 80°C (media) - Nominal Flow Rate
- 50LPM
- Media Types
- Air, Water, Light Oil
-
Detailed Technical SpecificationsDownload PDF Brochure Download Flow Characteristic PDF fileDownload CAD 3D Model IGS fileDownload CAD Drawing PDF file
18 : SERIES T 1/2” BSP Inlet (Female) - 1/2” BSP Outlet (Male)
-
- Pressure Range
- 20kPa (3psi) - 1250kPa (180psi)
- Temperature Range
- 2°C - 60°C (ambient)
2°C - 80°C (media) - Nominal Flow Rate
- 20LPM
- Media Types
- Air, Water, Light Oil
-
Detailed Technical SpecificationsDownload PDF Brochure Download Flow Characteristic PDF fileDownload CAD 3D Model IGS fileDownload CAD Drawing PDF file
19 : SERIES U 1/2” BSP Inlet (Female) - 1/2” Barb Outlet
-
- Pressure Range
- 20kPa (3psi) - 1250kPa (180psi)
- Temperature Range
- 2°C - 60°C (ambient)
2°C - 80°C (media) - Nominal Flow Rate
- 20LPM
- Media Types
- Air, Water, Light Oil
-
Detailed Technical SpecificationsDownload PDF Brochure Download Flow Characteristic PDF fileDownload CAD 3D Model IGS fileDownload CAD Drawing PDF file
20 : SERIES V 1” BSP Inlet (Manifold) - 1” BSP Outlet (Female)
-
- Pressure Range
- 50kPa (7psi) - 1250kPa (180psi)
- Temperature Range
- 2°C - 60°C (ambient)
2°C - 60°C (media) - Nominal Flow Rate
- 100LPM
- Media Types
- Air, Water, Light Oil
-
Detailed Technical SpecificationsDownload PDF Brochure Download Flow Characteristic PDF fileDownload CAD 3D Model IGS fileDownload CAD Drawing PDF file
21 : SERIES Y 3/4” BSP Inlet (Male) - 3/4” BSP Outlet (Male) High Flow Manifold
-
- Pressure Range
- 30kPa (4psi) - 1250kPa (180psi)
- Temperature Range
- 2°C - 60°C (ambient)
2°C - 60°C (media) - Nominal Flow Rate
- 50LPM
- Media Types
- Air, Water, Light Oil
-
Detailed Technical SpecificationsDownload PDF Brochure Download Flow Characteristic PDF fileDownload CAD 3D Model IGS fileDownload CAD Drawing PDF file
22 : SERIES Z 3/4” BSP Inlet (Male) - 3/4” Barb Outlet High Flow Manifold
-
- Pressure Range
- 30kPa (4psi) - 1250kPa (180psi)
- Temperature Range
- 2°C - 60°C (ambient)
2°C - 60°C (media) - Nominal Flow Rate
- 50LPM
- Media Types
- Air, Water, Light Oil
-
Detailed Technical SpecificationsDownload PDF Brochure Download Flow Characteristic PDF fileDownload CAD 3D Model IGS fileDownload CAD Drawing PDF file
